UPGRADE YOUR IMAGE

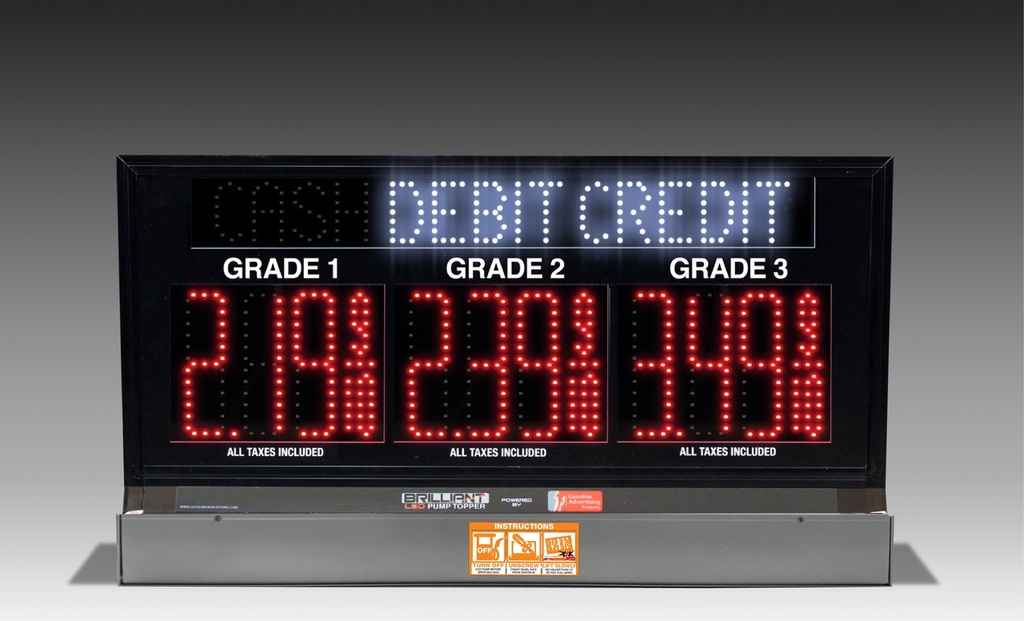

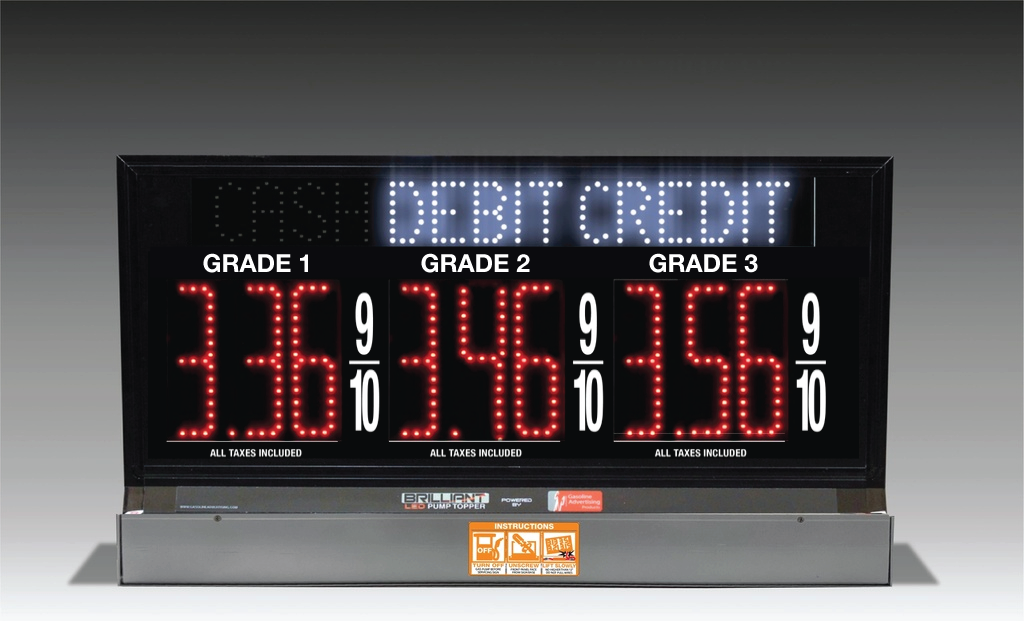

Fuel Price Update Automation With Digital LED Price Sign
Save time, money and have control of your price management when you need it.
Price sign update automation made simple for the entire site, including main ID
signs and/or canopy-mounted units. Built with unique design featuring wall-to-wall
Power base junction box configuration for various dispenser widths to blend in as
part of the dispenser without showing any wires or pipes.
Product Features:
- Super-bright LED segments for outdoor environments.
- Super Slim 1.25" deep frame design.
- Double-sided with an impact-resistant rigid polycarbonate shield.
- Choice of fuel grade ID's.
- Ships fully assembled with 2-step quick installation.
- 3-point quick-connect wiring harness included.
- 3 communication options for updating pricing including POS interface, price master integrator and price master touch screen remote control.

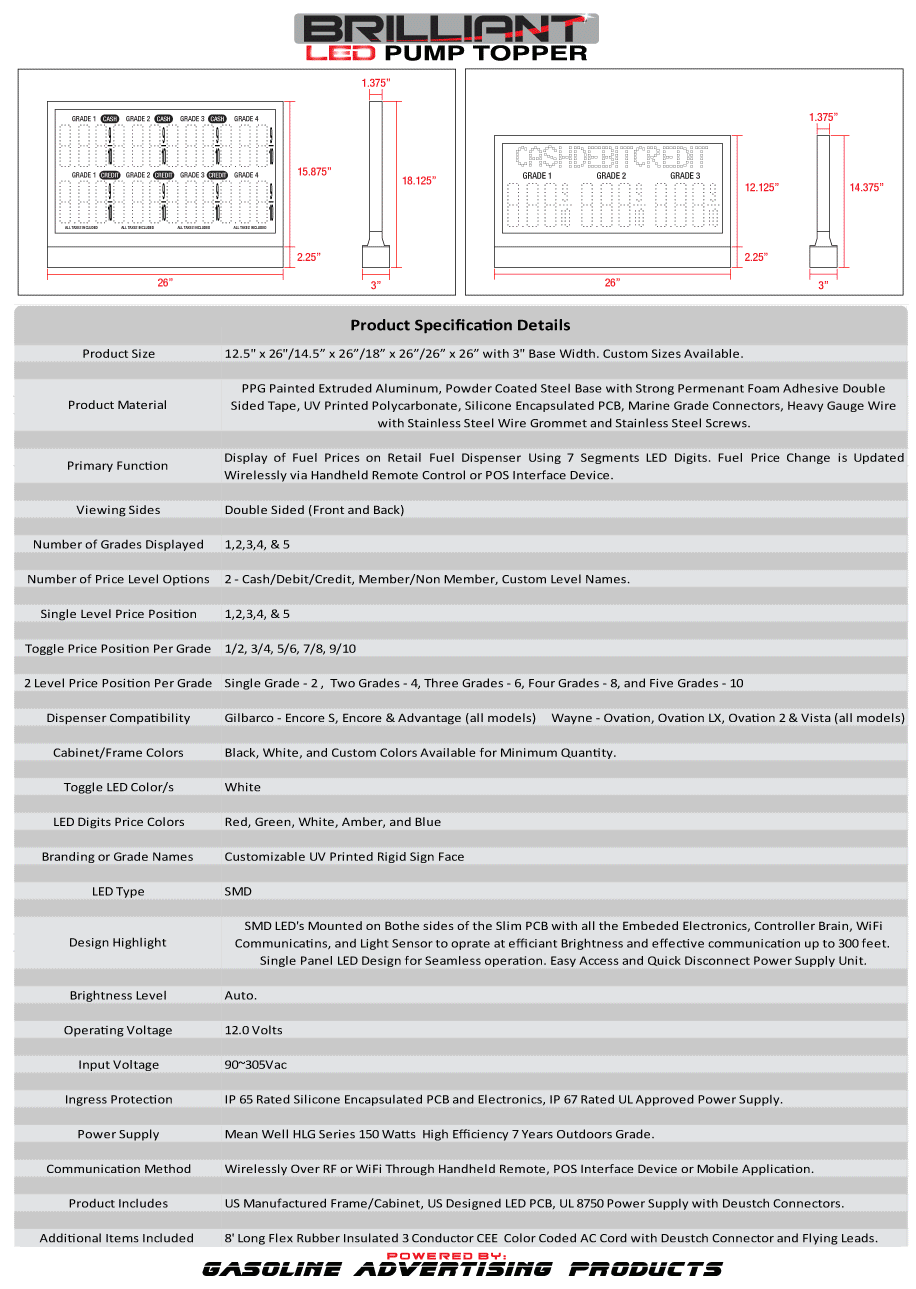

🛠️ Product Specifications
📏 Available Sizes
- 12.5" x 26"
- 14.5" x 26"
- 18" x 26"
-
26" x 26"
***All with 3" base width. Custom sizes available upon request***
🧱 Materials
- PPG painted extruded aluminum
- Powder-coated steel base
- Permanent foam adhesive (double-sided)
- UV-printed polycarbonate
- Silicone-encapsulated PCB
- Marine-grade connectors
- Heavy gauge wire with stainless steel grommet and screws
💡 Functionality
Primary Use:
Displays fuel prices on retail dispensers using 7-segment LED digits.
Price Updates:
- Wireless control via handheld remote or POS interface
Viewing Sides:
- Dual-sided (front and back)
🔢 Fuel Grade & Price Options
- Grades Supported: 1 to 5
- Price Levels: 2 (e.g. Cash/Debit vs. Credit, Member vs. Non-Member)
- Single Price Positions: 1 to 5
- Toggle Price Pairs: 1/2, 3/4, 5/6, 7/8, 9/10
- 1 Grade = 2
- 2 Grades = 4
- 3 Grades = 6
- 4 Grades = 8
- 5 Grades = 10
- 2-Level Positions Per Grade
🛠️ Dispenser Compatibility
- Gilbarco: Encore S, Encore, Advantage (All Models)
- Wayne: Ovation, Ovation LX, Ovation 2, Vista (All Models)
🎨 Customization Options
- Frame Colors: Black, White, or Custom (MOQ applies)
- LED Toggle Color: White
- Price Digit Colors: Red, Green, White, Amber, Blue
- Branding/Grade Labels: UV-printed, rigid sign face
- LED Type: SMD
⚙️ Design Highlights
- Slim PCB with dual-sided SMD LEDs
- Embedded controller, WiFi, and light sensor
- Seamless single-panel LED display
- Easy-access quick-disconnect power supply
- Brightness auto-adjusts based on ambient light
- Wireless control up to 300 ft range
⚡ Electrical & Protection
Operating Voltage: 12V
Input Voltage: 90–305V AC
- Ingress Protection:
-
- IP65-rated electronics
-
- IP67-rated UL-approved power supply
-
- Power Supply:
-
- Mean Well HLG Series, 150W
-
- 7-year outdoor rating
-
📡 Communication
- Wireless (RF or WiFi)
- Supports handheld remote & POS interface
📦 Included with Product
- U.S.-manufactured frame/cabinet
- U.S.-designed LED PCB
- UL 8750-certified power supply with Deutsch connectors
- 8 ft 3-conductor rubber-insulated AC cord (color-coded, Deutsch connector, and flying leads)
